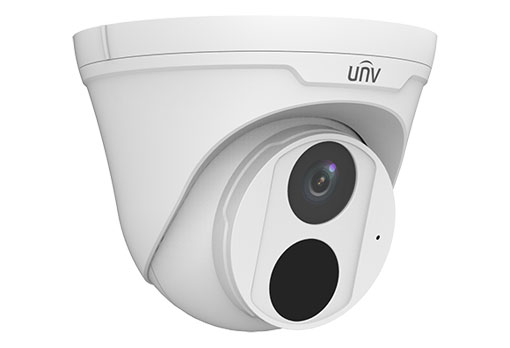

IPC3612LB-ADF28(40)K-G 2MP HD IR Fixed Eyeball Network Camera

Sensor: 1/2.7″, 2.0 megapixel, progressive scan, CMOS

Minimum Illumination: Colour: 0.01 lux ( F2.0, AGC ON)
0 lux with IR

Day/Night: IR-cut filter with auto switch (ICR)

Shutter: Auto/Manual, 1 ~ 1/100000s

Adjustment angle

Pan: 0° to 360°

Tilt: 0° to 80°

Rotate: 0° to 360°

S/N: >52dB

WDR: 120dB

Lens Type: 2.8mm @F2.0

Iris: Fixed

Field of View (H): 112.9°

Field of View (V): 59.1°

Field of View (D): 121.2°

DORI Distance	Lens (mm)	Detect (m)		Observe (m)			Recognize (m)		Identify (m)
	2.8	42.0		16.8			8.4		4.2
	4.0	60.0		24.0			12.0		6.0

IR Range: Up to 30m (98ft) IR range

Wavelength: 850nm

IR On/Off Control : Auto/Manual

Video Compression: Ultra 265, H.265, H.264, MJPEG

H.264 Code Profile: Baseline profile, Main profile, High profile

Frame Rate: Main Stream: 1080P (1920*1080), Max 30fps; 720P (1280*720), Max 30fps
Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps

Video Bit Rate: 128 Kbps~6144 kbps

U-code: Support

9:16 Corridor Mode: Support

OSD: Up to 4 OSDs

Privacy Mask: Up to 4 areas

ROI: Up to 8 areas

Video stream: Dual streams

White Balance: Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2

Digital NoiseReduction: 2D/3D DNR

Smart IR: Support.

Flip: Normal/Vertical/Horizontal/180°/90°Clockwise/90°Anti-clockwise

Dewarping: N/A

HLC: Support

BLC: Support

Defog: Digital Defog

Basic Detection: Cross line, intrusion(based on human body detection)

                           motion detection, tampering alarm, audio detection

General Function: Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication

Audio Compression: G.711U, G.711A

Audio Bitrate: 64 Kbps

Two-way Audio: N/A

Suppression: Support

Sampling Rate: 8KHZ

Edge Storage: Micro SD, up to 128GB

Network Storage: ANR,NAS(NFS)

Protocols: Pv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, SNMP

Compatible Integration: ONVIF (Profile S, Profile G, Profile T), API, SDK

User/Host: Up to 32 users. 2 user levels: administrator and common user

Security: Password protection, Strong password, HTTPS encryption, Export operation logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF

Client: EZStation
EZView
EZLive

Web Browser: Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above

                        Plug-in free live view: Chrome 57.0 and above, Firefox 58.0 and above, Edge 16 and above

Audio I/O: N/A

Alarm I/O: N/A

Serial Port: N/A

Built-in Mic: Support

Built-in Speaker: N/A

WIFI: N/A

Network: 1 * RJ45 10M/100M Base-TX Ethernet

Video Output: N/A

EMC: DC 12V±25%, PoE (IEEE 802.3af)

          Power consumption: Max 7.0W

Power Interface: Ø 5.5mm coaxial power plug

Dimensions (Ø x H): Φ118 x 96mm (Φ4.6” x 3.8”)

Weight: 0.30kg (0.66lb)

Material: Metal + plastic

Working Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)

Strorage Environment: -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)

Surge Protection: 4KV

Reset Button: N/A
