Specification
| Model | MP60UB | |
| Description | PA Amplifier with USB/SD & FM & Bluetooth | |
| Rated power | 60W | |

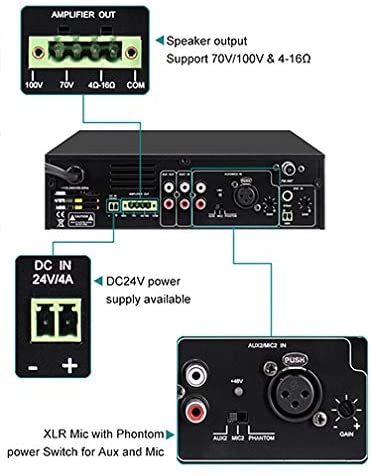

| Speaker Outputs | 100V or 70V & 4Ohms-8 Ohms-16 Ohms | |
| Connector | Mic1 input by unbalance 6.3mm phone jack
MIC 2& MIC3 balance XLR socket Line1-2 inputs by RCA; Line output by RCA
|
|
| Attenuation | Microphone1-3, line1-2 and Mp3/FM, bass/treble and master | |
| MIC1 input sensitivity | 5mV | |
| MIC2 input sensitivity | 5mV | |
| MIC3 input sensitivity | 5mV | |
| AUX1 input sensitivity | 350mV | |
| AUX2 input sensitivity | 350mV | |
| EMC input sensitivity | 350mV | |
| MIC frequency response | 180Hz～10kHz（±3dB） | |
| AUX frequency response | 70Hz～16kHz（±3dB） | |
| Noise | <5mV (4 ohm load output terminal) | |
| THD | <1% 1KHz | |
| Protection | Short-circuit, clip, overload and high temp protection | |
| Treble adjustment | 10dB（±2） | |
| Bass adjustment | 10dB（±2） | |
| Rated power Supply | AC~110-220V | |
| Rated outpu voltage | 60W/4Ω, AC220V | |
| Priority | EMC > MIC1 > others | |
| Machine size(L×W×H) | 247*198*66mm | |
| Packing size | 343*302*121mm (1PS) | |
| Maximum packing size | 630*355*283mm (4PS)
|
|
| Net Weight | 2.6kg | |
| Gross Weight | 3.25Kg | |
